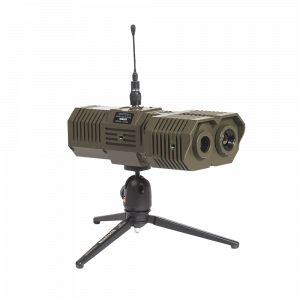

Scout Mk3

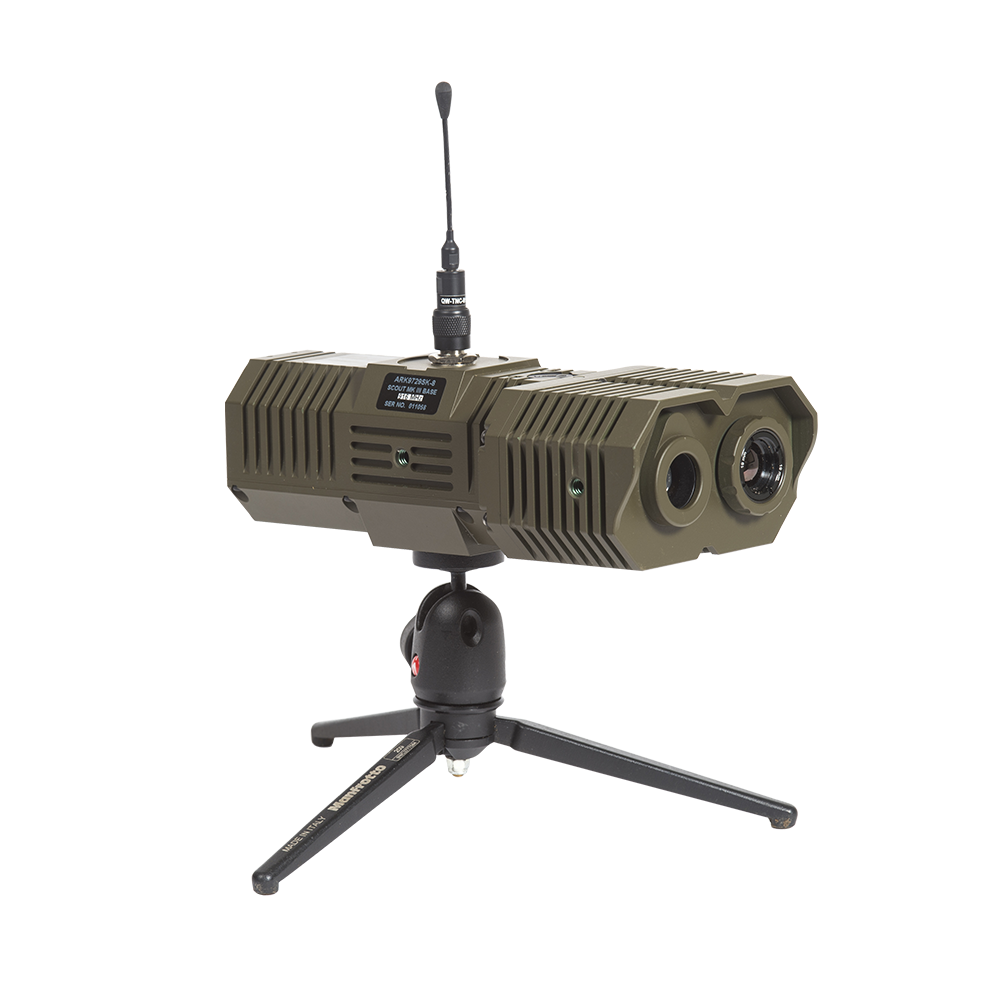

The Scout Mk3 is an intelligent motion camera that can provide day and night, high quality pictures and videos. User friendly and rapidly deployable, the Scout can control two camera heads and has various accessories to fit the users’ specific needs.

Thermal Sensing

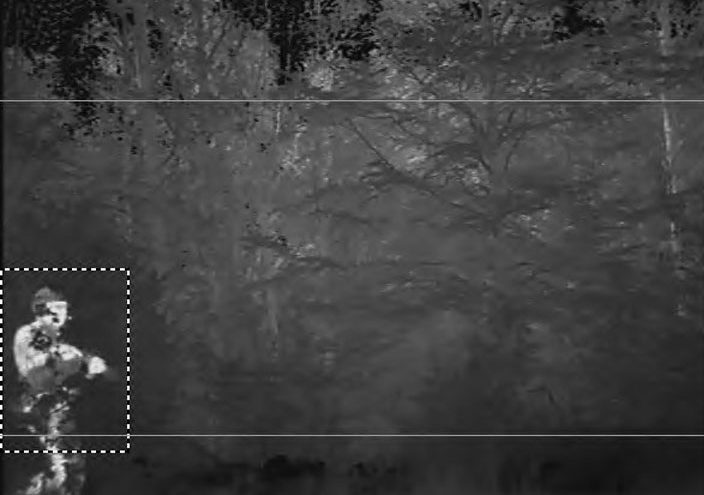

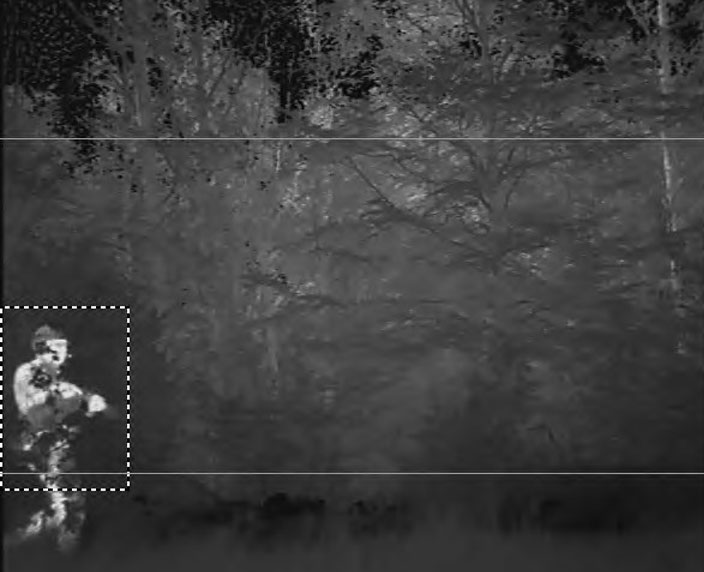

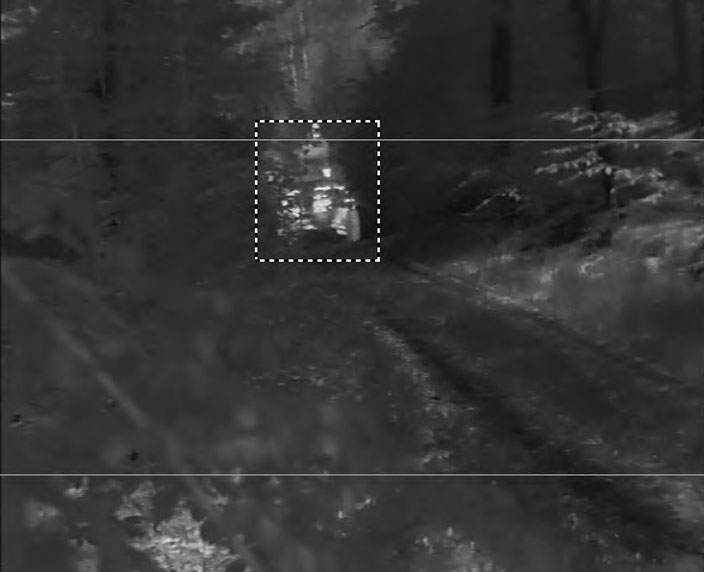

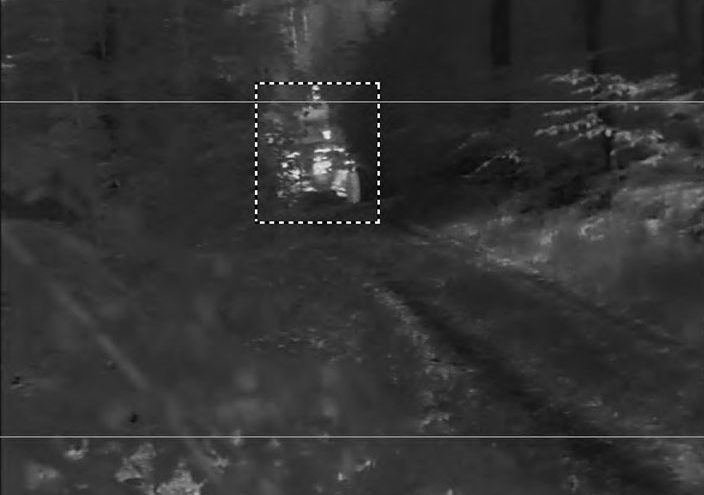

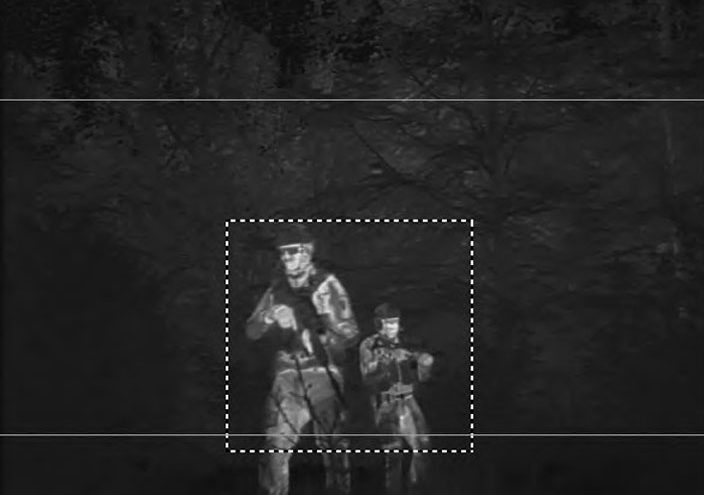

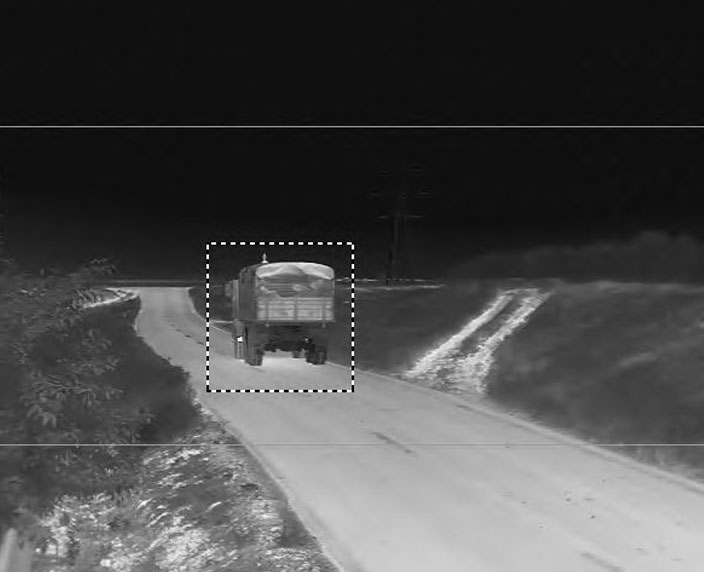

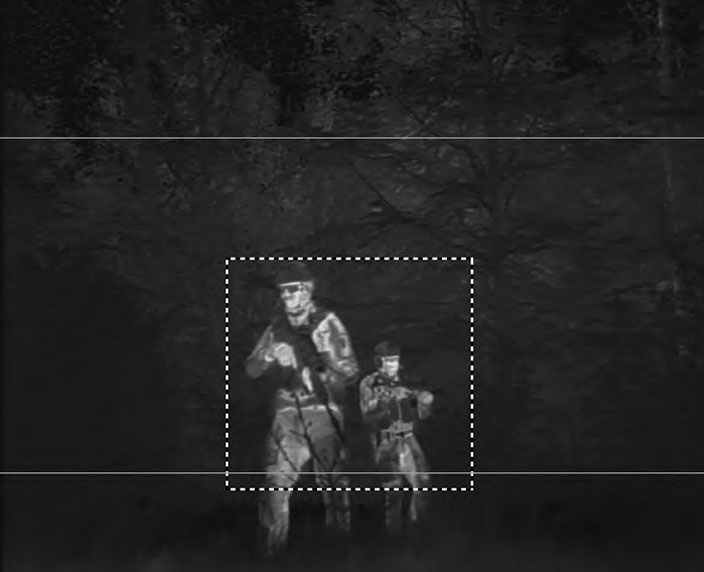

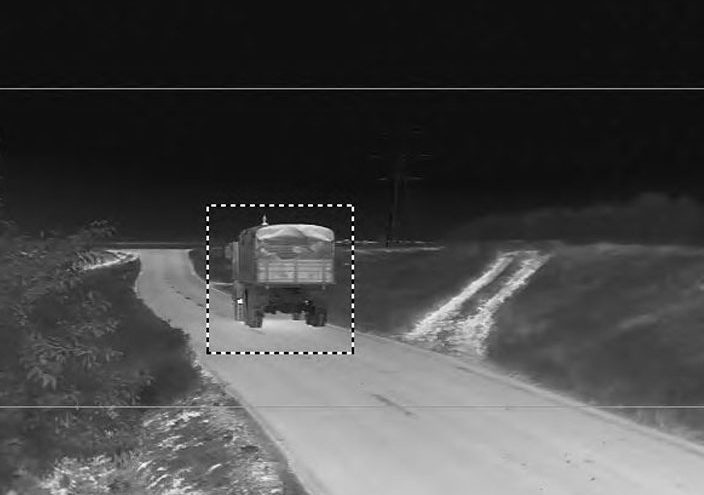

The built-in image processing function detects motion and activates the camera to take images, compresses them and either stores the images or transmits them back to the base station using encrypted (AES-256) communication. The advanced motion detection algorithms detect any motion in the user’s defined areas of interest. Before, during and after an event, the camera can take single or multiple images. The Scout Mk3 uses advanced compression technology to allow fast transmission over the low bandwidth network. It has a storage capacity of several thousand images.

Download the brochure

Key benefits

Motion detection capability

Real-time snapshot images and videos

Day and night vision

Specifications

Size	• 62mm x 62mm x 210mm (19mm single head option) • 62mm x 69mm x 220mm (19mm dual head option)
Weight	1.3kg (19mm single head option) 1.5kg (19mm dual head option)
Operational endurance time	30 days with integrated rechargeable battery (1-year battery as option)
Temperature	-32 to +71°C in operation
Environmental	MIL-STD-810
EMC	MIL-STD-461
Tamper alarm	Built-in anti-tamper with GPS
Position	GPS for self-location

Capability

Remote surveillance in dead ground
Real time snapshot images over secure wireless network
Provides images or video clips

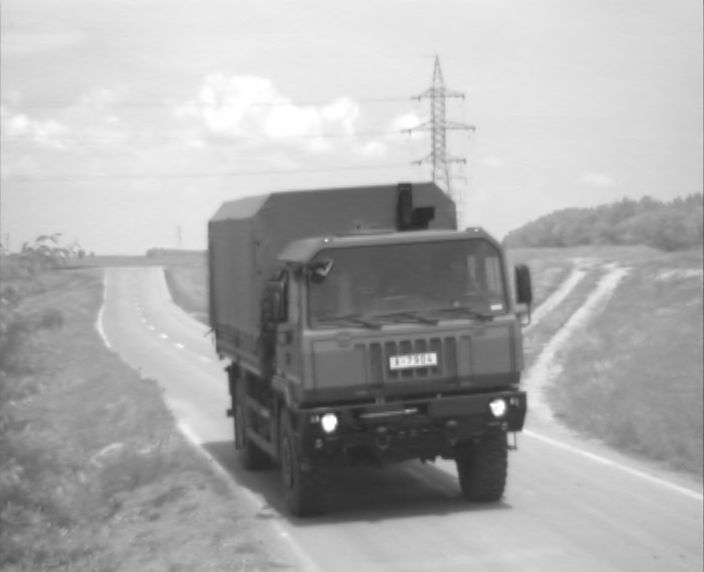

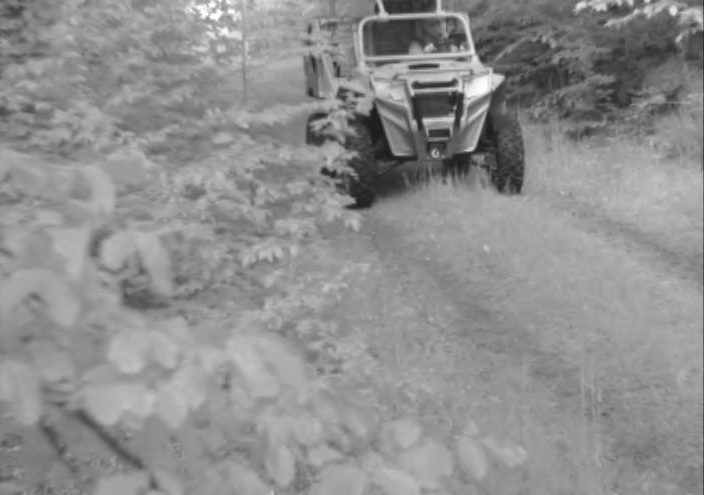

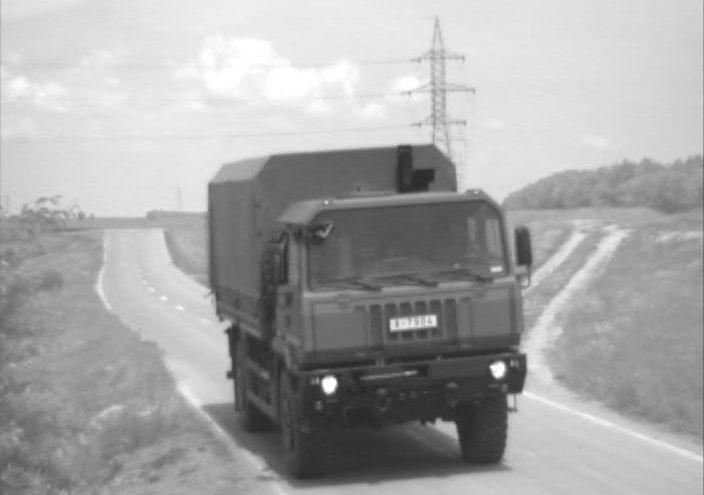

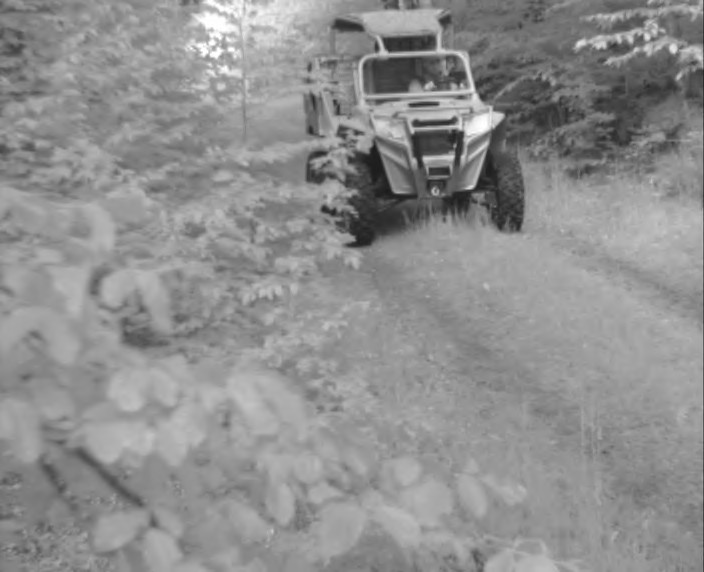

High-quality day and night images
Several lens options

The Scout Mk3 can be equipped with two camera heads. Camera heads can be delivered with thermal imaging (TI) sensors, and low light sensors with different lens options (from 7 to 65mm) such as zoom or narrow/wide angle. The camera heads can be attached directly to the camera body or mounted remotely and connected via a cable. The Scout Mk3 is activated by other sensors over the radio network or by a PIR Module attached via cable. After activation, the motion control sequence starts for a pre-set time, configured by the operator. The Scout Mk3 operates as an individual node in the mesh network, relaying data from the other sensors (Mini/Scout/PIR) back to the base station.
